the equipment’s on/off state, percent on time,
number of operating cycles and total running

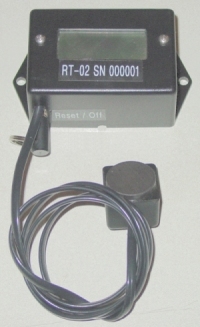

time. No wiring is required to install the RT-
02. An inductive sensor that detects
alternating magnetic fields is connected to the
display with a flexible cable. The sensor can
be permanently or temporarily affixed to a steel
case using the sensor's magnetic base. The
sensor works with either fixed speed or
variable frequency drive motors, single or multi-
phase motors of any HP rating and can
monitor solenoid-operated valves, relays and
transformers. Close proximity to the coil
portion of these devices is typically required.
The measurements are displayed in an
alternating fashion on an LCD display. The
unit’s measured statistics are reset to zero on
power off by inserting the supplied Reset / Off
key. The unit operates continuously when the
key is removed from the Reset / Off jack. If
desired, the display can be secured to a flat
surface using its two mounting ears and
number 8 screws.
